nstructions for use:
1. Before use, please check if the voltage used matches the rated voltage of this product;
2. Check the output hole of the optical fiber bundle and connect it to the power supply to use it;
3. The dimming switch can be adjusted according to needs to adjust the intensity of output light;
4. When working, it is strictly prohibited to place the water cup above the lightbox to prevent water droplets from splashing into the interior, which may cause damage to the lightbox.。
Performance Introduction:
1. Energy saving and environmental protection, high light efficiency, long service life, and long-term continuous operation; Strong reliability; Easy to adjust and operate; Low failure rate.
2. Absorbing the technological advantages of numerous light sources, it is meticulously developed using electronic circuits and components, and can replace halogen light sources.
Technical Parameter
| Operating voltage: |
180v-230v AC |
| Frequency: |
50HZ |
|
Power:
|
100VA |
| Fuses: |
2A |
| Color temperature |
>=5500k |
| temperature rise |
<=45℃ |
| LED module: |
50W/70W/100W |

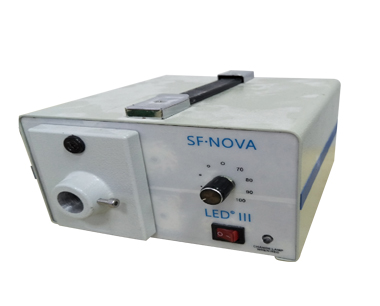

| The volume of the lightbox shown in the diagram (length * width * height) |
188*184*112（mm） |
| Optical terminal strength max |
7000Lm |
matters needing attention
1. This machine is not suitable for working in dusty environments; In places with high levels of dust, explanations should be provided when ordering;
2. Do not block the heat dissipation hole to ensure normal heat dissipation of the light source;
3. After starting the light source, it is prohibited to look directly at the output hole of the light source to prevent strong light from burning the eyes;
4. Be sure to cut off the power supply during maintenance.
Function Description
The fire rating of this machine is manufactured according to European and American standards. The lifespan of LED light sources is inversely proportional to temperature rise. This product uses a heat sink, which is closely integrated with high-power LED modules. It timely absorbs the temperature generated by LED particles during operation, and uses the side instrument fan of the chassis to timely extract the heat absorbed by the heat sink, greatly solving the problem of LED lifespan being affected by temperature.
