Features:

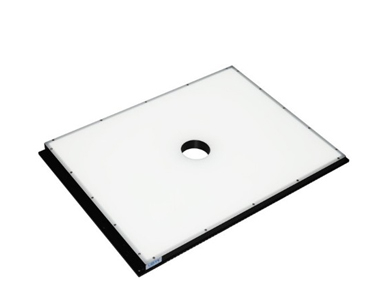

◆ The middle hole backlight source can replace the shadowless light source to achieve uniform illumination in a large format
◆ Side backlight opening can be used for front lighting
◆The size, quantity, position, and size of openings can be flexibly customized.
|
Application:
◆ Large area circuit board component detection and identification
◆ Character recognition of electronic components
◆ Mark point positioning
|

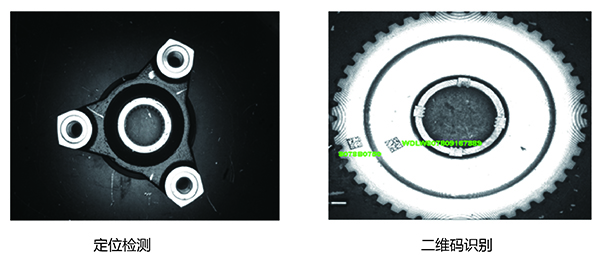

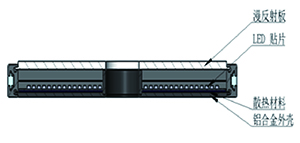

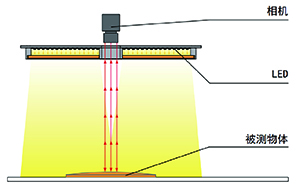

| Light source structure | Work diagram | Application examples |
  |
 |
Ordering model
| Shanghai Shifeng | Middle hole backlight | Imported aluminum profiles | Length * Width |
Parameter Table
| Series Type | model | colour | Serial Number | power | notes |
| Ordinary aluminum material | SF-FLK-330*330 | ●●●● | 1 | 24V/42.8W | Installation method optional: through hole installation |
| SF-FLK-420*420 | ●●●● | 2 | 24V/69.3W | ||
| SF-FLK-540*420 | ●●●● | 3 | 24V/89.2W | ||
| Imported aluminum profiles | SF-FLK-JK-150*150 | ●●●● | 4 | 24V/17.6W | |
| SF-FLK-JK-200*200 | ●●●● | 5 | 24V/20.8W | ||
| SF-FLK-JK-260*260 | ●●●● | 6 | 24V/38W | ||
| SF-FLK-JK-335*335 | ●●●● | 7 | 24V/57.5W | ||
| SF-FLK-JK-360*360 | ●●●● | 8 | 24V/67.5W | ||
| SF-FLK-JK-420*335 | ●●●● | 9 | 24V/73.2W | ||
| SF-FLK-JK-540*420 | ●●●● | 10 | 24V/117W | ||
| SF-FLK-JK-620*545 | ●●●● | 11 | 24V/175.7W |
