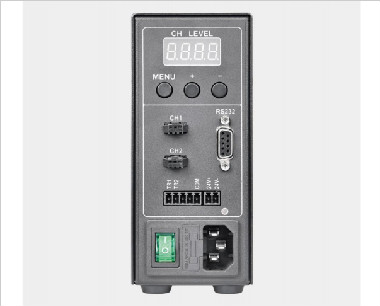

Controller characteristics：

Support RS232 communication
Built-in 24V switching power supply
Low trigger response time (≤10us)
Support external trigger mode
Support millisecond strobe and microsecond strobe.
Brightness and mode can be set manually.
5~24V bidirectional trigger, which can adapt to high and low level trigger mode.
Small size, convenient installation, screw installation or C45 clamp rail installation.

Parameter list

Single channel maximum output current	Optional 2.5A/4A
Maximum input voltage	AC220V
Maximum output voltage	24V
Overcurrent protection	Not
Work pattern	0：Constant off 1：Constant on 2：Millisecond level stroboscopic    3：Microsecond level stroboscopic
Overvoltage protection	Not
Constant brightness level	Level 255 Continuously adjustable
Trigger mode	Edge+level trigger
operating ambient temperature	-5~50℃
Communication baud rate	9600bps
Millisecond strobe time	1~99ms
Microsecond strobe time	10~990μs
Luminous mode	Constant off/Constant on/stroboscopic
Weight	865g
Measure	66×117×122mm

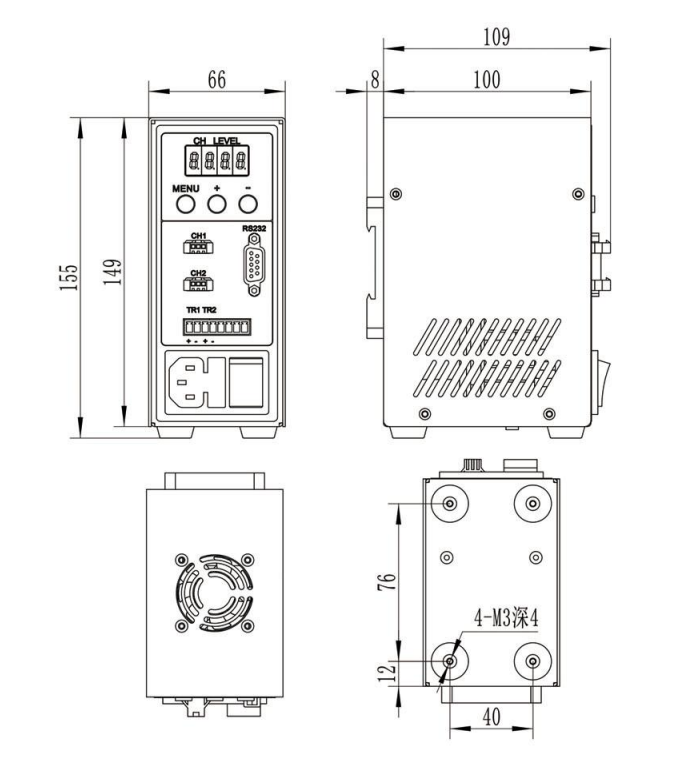

Dimensional drawing

Model selection

SN	Model	Internal power supply power	Port number	Connecting light source type
1	XM-DV65-N20C-24025-2	65W	2	10mA~2.5A  24V
2	XM-DV120-N20C-24040-2	120W	2	10mA~4A  24V
